Committed To Quality, Committed To You

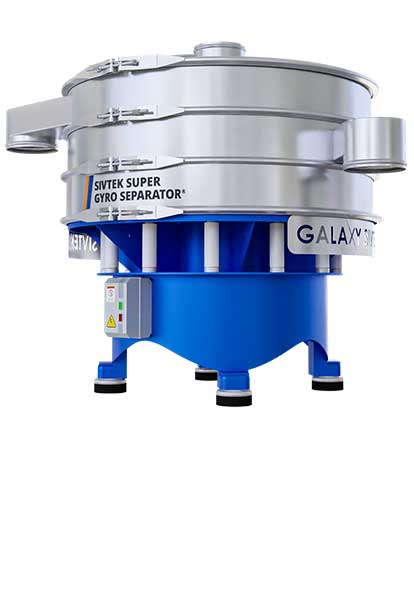

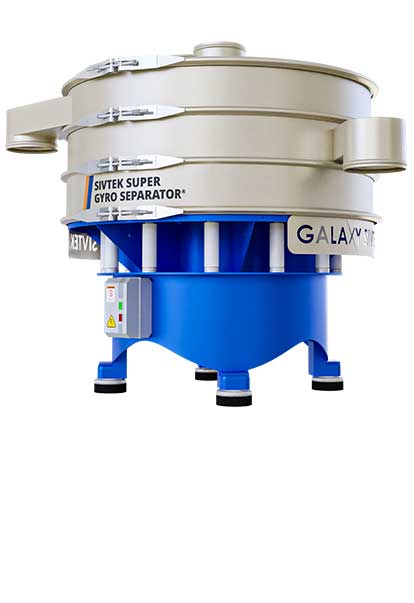

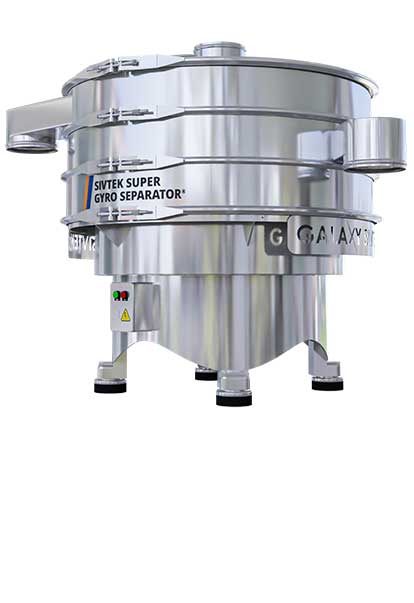

SIVTEK SUPER GYRO SEPARATOR®

Galaxy Sivtek’s Super Gyratory Separator® is engineered to double the efficiency of your screening process while significantly reducing power consumption. This advanced gyratory screener ensures optimal results across various materials—wet, dry, coarse, fine, hot, or cold.

The innovative design of the gyro separator enables it to generate twice the vibration of conventional screeners. Vibratory motors, positioned on the top and bottom weights, create a circular motion that maximizes throughput and ensures even distribution of material across the screen. This even spread fully utilizes the screen’s capacity, accelerating the screening process and reducing overall time.

The Super Gyratory Separator® is working efficiently when we need to process the fine materials, with the help of our gyro separator you can screen up to 5 level without compromising the quality of your material. Its unique design is ideal for different kind of industries like food, plastic, ceramics, pharmaceuticals, chemicals, minerals etc.

Using this gyro screener, you can not only increase the throughput but also enhance the productivity with minimal operational costs. It works highly effective in such applications like marble powder, pebble gradation, tea processing, slurry separation, waste management and many more diverse industries.

SIVTEK SUPER GYRO SEPARATOR

THE ROBUST
HIGH
VIBRATION SIEVE

Working

Principle

super sivtek gyro separator

PROVIDES TWO-TIMES HEIGHER VIBRATIONS

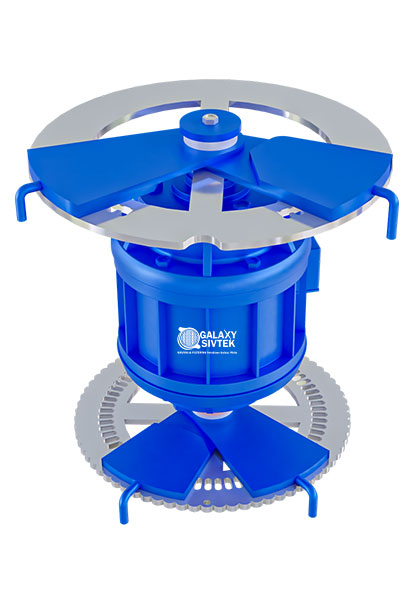

Our Super Gyratory Separator® can produce such high-intensity vibrations due to its eccentric weights on the upper and lower ends of the motion generator shaft. While the top weight distributes the material across the screen, the lower weight tilts the machine to generate vertical vibrations.

PRODUCT

Feature

01. Compact Design

The Super Gyratory Separator has a compact design that provides low headroom and can be easily incorporated into the processing line.

02. Adjustable Lead Angle

The gyratory separator has adjustable lead angles which allows you to control the fineness according to your screening requirements.

03. Very Maneuverable

The compact body of the Super Gyratory Separator, accompanied by the castor wheels, is highly mobile and easy to maneuver.

04. Sturdy Construction

Our Gyratory Separator can withstand all kinds of materials at the highest vibrations owing to its sturdy construction.

PRODUCT

Advantage

01. 2 Times Higher Vibrations

The eccentric weights on the upper and lower ends of the motion generator shaft allow the separator to produce twice the amount of vibration in comparison to other gyratory separators.

02. Higher Output

Because of the centerline inlet and outlet design, the inline sifter reduces the movement of screening material and provides higher output compared to conventional machines.

03. Requires lesser manpower

The Super Gyratory Separator is highly maneuverable due to the castor wheels which reduces the number of hands required for its operation.

Frequently

Asked Questions

The Super Gyro Separator® is customizable up to 5 levels for grading the material in 6 levels, the major USP of Galaxy Sivtek is that we offer customizable heights of the decks, depending upon the height available for the machine. These decks also come with option of different finishes for contact and non-contact parts, depending upon the requirements.
It is suitable for both dry and wet applications, the Sivtek Super Gyro Separator® can be used in food industry, pharmaceutical industry, mineral and metals industry, plastic, pigment industry, etc.

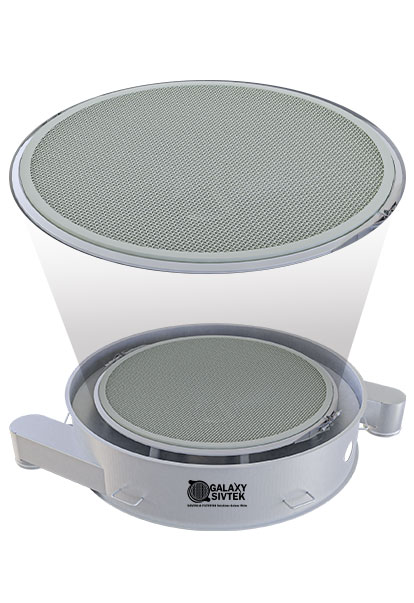

The Sivtek Super Gyro Separator® can sieve from 10mm to 25 Micron screen or 500µ, easily for a range of materials having higher to lower bulk density. This gives us a wider range of applications to cater and provide solutions. These meshes are FDA and cGMP compliant to maintain the hygienic and quality standards.
Depending upon the application and the feeding angle the Galaxy Sivtek has ingenuously designed a transfer chute which is attached to the end of the deck which directs the flow of the material to the centre of the mesh.
The Sivtek Super Gyro Separator® can generate Two times more vibrations than a Sivtek Vibro Separator®, which can deliver higher throughput and increased efficiency with ultra-fine mesh as compared to the same size gyratory separator.
At Galaxy Sivtek we provide motors as per customers’ requirements like IP55, IP66 which means they are dust proof and waterproof and if customer want flameproof motors, so we provide Atex certified flameproof motor also.
